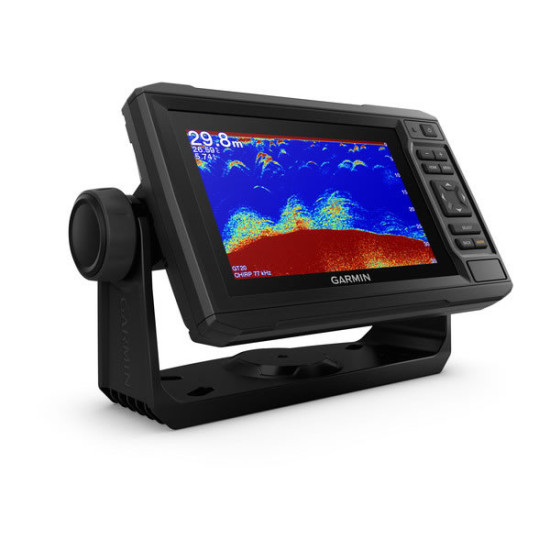

Garmin echoMAP Plus 65CV

Bright, sunlight-readable 6" combo the Garmin echomap plus 65cv includes support for crisp, clear Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar. Preloaded with BlueChart g2 charts for the United Kingdom, Ireland and Northwest mainland Europe coast. Plus,BlueChart g2 HD and BlueChart g2 Vision HD compatibility. Plus, Quickdraw Contours mapping software to instantly create personalised fishing maps on-screen with 1 foot contours as you fish. It also has built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, which allows you to purchase and download new charts. ActiveCaptain also gives you access to smart notifications (when paired with a compatible smartphone), the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more. You can also share waypoints and routes with other ECHOMAP or STRIKER units. Features quick-release bail mount to make it easy to remove and take with you.

Features

• Bright, sunlight-readable 6 inch combo
• Built-in support for Garmin CHIRP traditional sonar plus CHIRP ClearVü scanning sonar (transducer sold separately)
• Preloaded BlueChart g2 charts for the United Kingdom, Ireland and Northwest mainland Europe coast
• Built-in Garmin Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1 foot contours as you fish
• Use built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, smart notifications (when paired with a compatible smart phone>, Garmin Quickdraw Community data and more
• Share waypoints and routes with other ECHOMAP or STRIKER units

Specifications

• Physical Dimensions: 8.6" x 5.1" x 2.6" (21.8 x 13.0 x 6.2cm)
• Weight: 1.6lbs (0.7 kg)
• Water Rating: IPX7
• Display Type: 5.4" x 3.1"; 6" diagonal (13.7 x 7.7 cm; 15.2 cm diagonal)
• Display Resolution: 400 x 800 pixels
• Power Consumption: 12W
• Antenna: Internal or external over NMEA 2000
• Mounting Options: Bail or flush
• Receiver: 5 Hz
• Garmin Marine Network Ports: None

Maps & Memory

• Accepts data cards: 1 microSD card; 32 GB maximum card size
• Waypoints: 5,000
• Routes: 100
• Track Log: 50,000 points; 50 saved tracks
• Preloaded Maps: BlueChart g2 charts for the United Kingdom, Ireland and Northwest mainland Europe coast

Outdoor Recreation Features

• Tide tables

Chartplotter Features

• Garmin Sonar compatible
• Supports AIS (tracks target ships position)
• Supports DSC (displays position data from DSC-capable VHF radio)

Sonar Features & Specifications

• Dual-frequency (50/200 kHz) sonar capable
• Dual-beam (77/200 kHz) sonar capable
• Frequencies Supported: CHIRP (low, mid, high), Traditional (50/77/83/200 kHz), ClearVü (260/455/800 kHz)
• Transmit Power: 500 W (RMS) / 4,000 W (peak to peak)
• CHIRP sonar technology built-in
• ClearVu with CHIRP (built-in)
• SideVu: No
• Maximum Depth: 2,300 ft @ 77 kHz freshwater, 1,100 ft @ 77 kHz saltwater (depth capacity is dependent on water bottom type and other water conditions)
• Bottom lock (shows return from the bottom up)
• Water temperature log and graph
• Sonar recording
• Sonar history rewind

Connections

• NMEA 2000 compatible
• Transducer pin numbers: 4
• NMEA 0183 input ports: 1
• NMEA 0183 output ports: 1
• Video input ports: None
• Video output ports: None
• Wireless connectivity

In the Box

• ECHOMAP Plus 65cv with BlueChart g2 for UK, Ireland and Northwest mainland Europe coast
• Power/data cable
• 4-pin sounder to 8-pin transducer adapter cable
• NMEA 2000 adapter cable(4-pin female to 5-pin male)
• Tilt/swivel mount with quick release cradle
• Flush mount
• Protective cover
• Hardware
• Docu
